Whinfield Patios and Garden Paving

Houses and gardens in Whinfield

Whinfield grew on farmland north of Haughton-le-Skerne in the late 20th century, and today it runs out to the fields around Barmpton Lane and the Green Lane bridleway. It is well known locally for the Education Village, described as the first of its kind, which brings three schools together on one site; Whinfield Primary School serves the estate's younger children.

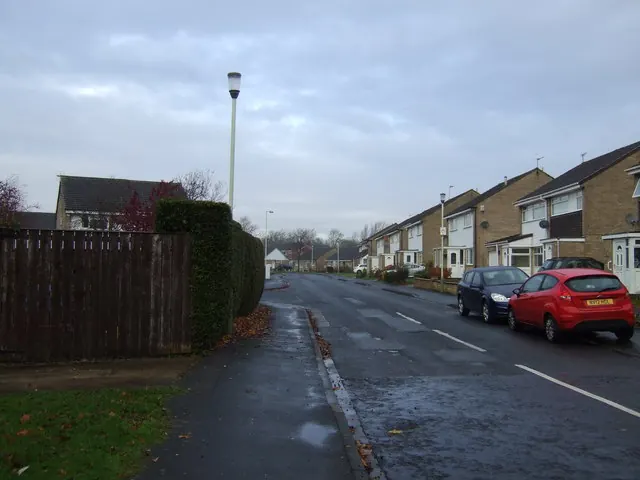

In the 2021 Census, 41.8% of households in the Whinfield ward lived in a semi-detached house, 34.3% in a detached house, 12.8% in a terrace and 10.9% in a flat. Streets such as Kilmarnock Road, Galloway and Rivergarth are laid out in loops and cul-de-sacs, with houses set behind small open front gardens and fenced rear gardens of moderate size.

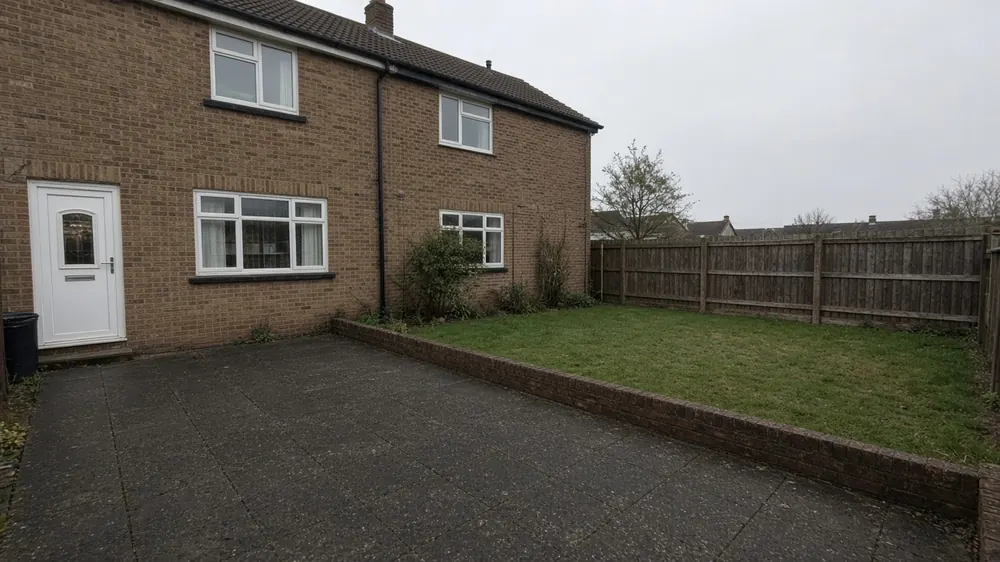

Thirty to forty years after they were built, many Whinfield homes still have their first patio: a small square of slabs by the back door, often sunk at the corners or lifted by a nearby tree. The usual project is to replace it with a bigger, level patio, add a path to the side gate or shed, and sometimes edge it with a low wall or raised bed so the garden feels finished.

Corner plots on the looping streets often have triangular or L-shaped back gardens. A patio with an angled edge, or one that follows the line of the house round a corner, usually makes better use of that space than a plain rectangle. Gardens on the outer edge facing Ely Hill and the farmland can be exposed to wind, so a low wall or hedge beside the seating area helps.

What lies under Whinfield

The British Geological Survey maps glacial till over the Seaham Formation, a dolomitic limestone, across Whinfield. At patio depth it is the till that counts: a firm, stony clay that sheds water slowly. When the estate was built, gardens were often levelled by moving this clay around, so there may be softer made ground in places, especially near the back fences.

Our approach is consistent: lift the old paving, dig out topsoil and any soft clay, lay a geotextile and build a well-compacted crushed-stone sub-base. The finished surface sits below the damp-proof course with a fall away from the house, and water is directed to the lawn, a border or an existing drain. Where a garden holds water, a channel drain or a permeable finish such as resin-bound surfacing can help.

The Environment Agency does not place Whinfield in Flood Zone 2 or 3. Flood Zone 3 lies within 750 metres along the River Skerne to the east, but most gardens are well above it. Surface water during heavy rain is the more likely nuisance on clay.

Planning checks for Whinfield

Whinfield has no conservation area and no listed buildings according to the national data we checked, and we found no Article 4 direction. That keeps things simple. A back-garden patio at or near ground level is permitted development; a raised platform more than 30cm above ground needs permission; and front-garden paving over five square metres must be permeable or drain to a soft area.

Some trees in and around the estate may have tree preservation orders, particularly mature trees retained when the houses were built. If a tree stands near the planned patio, check with Darlington Borough Council before cutting roots or branches.

Budget factors

We set out a figure after a visit. In Whinfield, quotes usually depend on:

• Area. Medium-sized gardens suit a patio across the back of the house.
• Removal. The original slabs and sand bed need lifting.
• Made ground. Soft spots mean digging deeper.
• Path and edging. A path to the gate or shed adds length.
• Material. Slabs, porcelain, sandstone or resin.
• Walls. Low walls and raised beds add materials and time.

Also near Whinfield

• Patios in Haughton-le-Skerne: South: a conservation-area village green by the River Skerne.
• Patios in Harrowgate Hill: West: semis and terraces between the railway lines.

Most relevant pages for Whinfield: patio slabs and paving, resin patios and paths, garden walls.

All places we cover: areas page.

Whinfield: common patio questions

Sources: Wikipedia: Whinfield; ONS Census 2021 TS044, Whinfield ward (Nomis); BGS Geology Viewer; Environment Agency Flood Map for Planning; Planning Portal: paving your front garden.
