Houses and gardens in Harrowgate Hill
The area covered by the Harrowgate Hill ward includes the small settlements of Beaumont Hill and Harrowgate Village, which sit in the civil parish of Whessoe, as well as Ashbrook and the main built-up area of Harrowgate Hill, which is unparished. Until the ward boundaries changed in 2015, the area was enclosed on two sides by railways: the East Coast Main Line to the east and the Tees Valley line to the west.

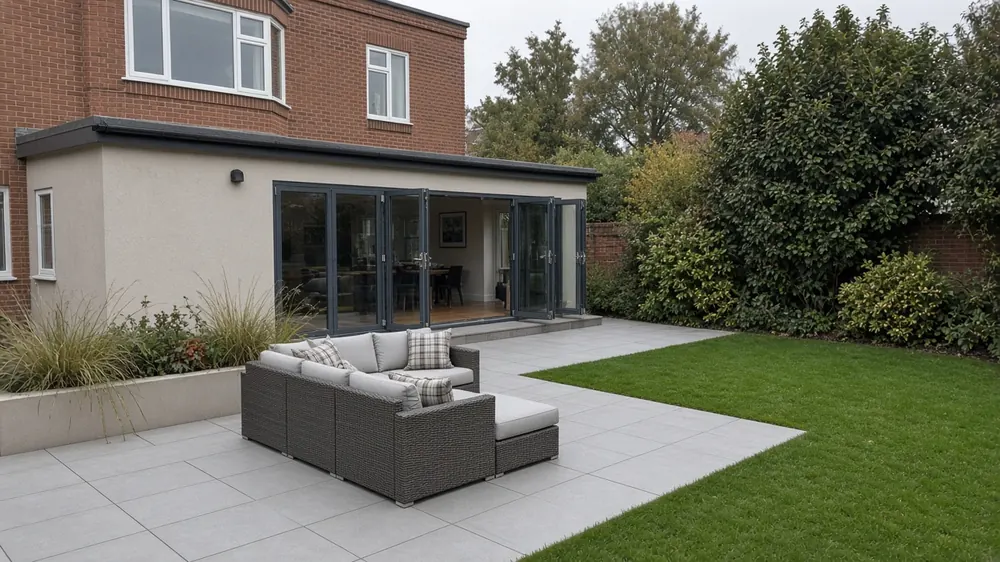

The 2021 Census shows a suburb of family houses. In the Harrowgate Hill ward, 55.2% of households live in a semi, 21.7% in a detached house and 21.7% in a terrace, with almost no flats at 0.4%. Along and behind North Road there are interwar and post-war semis and terraces; towards Harrowgate Village and Burtree Lane, newer houses meet open grazing land.

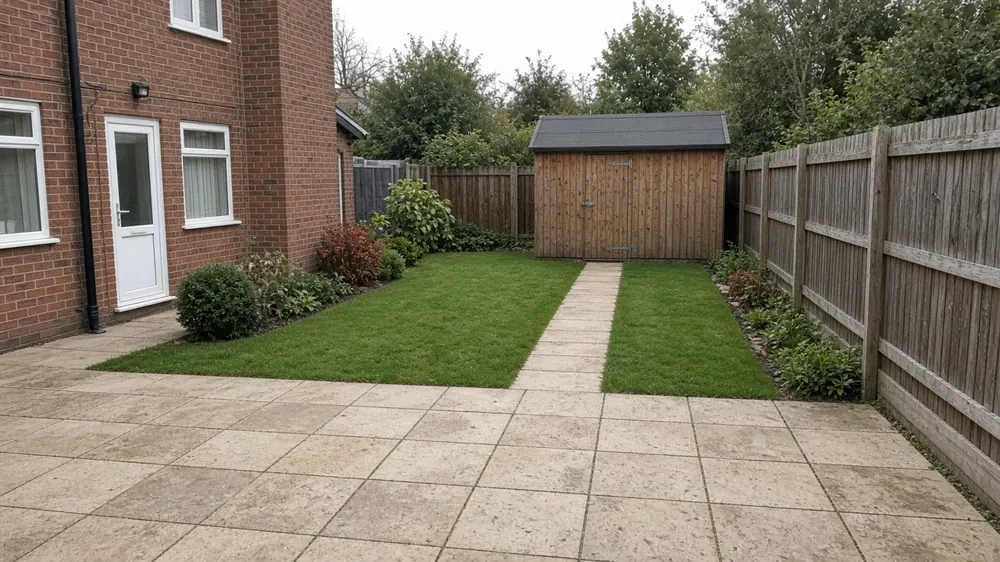

Gardens are generally modest and rectangular. The patio is often an old concrete area or a few slabs by the back door, now cracked or uneven, and the garden beyond is lawn with a shed at the end. A level patio across the width of the house, a straight path to the shed or back gate, and a neat edge to the lawn cover most requests. Corner plots and end terraces sometimes have more room to the side. On the newer streets near Harrowgate Village the plots are often wider and shallower, and owners there tend to ask for a patio that wraps round to a side gate. Gardens backing onto open grazing land get more wind, so a low wall or planted edge can make a seating area more sheltered.
Darlington's North Cemetery lies within the area, and its chapels and porte-cochère are listed at Grade II, as is Honey Pot House.
What lies under Harrowgate Hill
The British Geological Survey maps glacial till over dolostone of the Ford Formation, part of the Magnesian Limestone, across Harrowgate Hill. The till is a stiff, stony clay that drains slowly and can heave a little with frost and shrink in drought. Old patios here commonly fail because they were bedded on sand directly over the clay.
We start by removing the old surface and its bed, then dig to firm clay, lay a geotextile and build a crushed-stone sub-base compacted in layers. The paving goes down on a full mortar bed with a fall away from the house, finishing below the damp-proof course so that rain cannot splash above it. If the lawn stays wet, we route water to a gully or soakaway instead.
The Environment Agency does not place Harrowgate Hill in Flood Zone 2 or 3, and no river Flood Zone 3 lies within 750 metres. Surface water on the clay is the main concern after heavy rain, particularly in gardens lower than the street.
Planning checks for Harrowgate Hill
None of the residential streets in Harrowgate Hill sits in a conservation area, and we found no Article 4 direction. The council's S&DR: Northgate Conservation Area, which protects part of the line of the Stockton and Darlington Railway, lies nearby. A back-garden patio at ground level is permitted development, a raised platform over 30cm needs permission, and front-garden paving over five square metres must be permeable or drain to a soft area.
If the patio would sit near a large tree, it is worth checking whether a tree preservation order applies before cutting roots.
Budget factors
We give a figure after measuring up. In Harrowgate Hill, the main factors are:
- Old paving. Concrete takes longer to break out than slabs.
- Clay. Excavation depth and how much stone is needed.
- Access. Terraces without side or rear access need careful planning.
- Size and path. Patio width and any path down the garden.
- Material. Concrete slabs, porcelain or sandstone.
- Edging and drainage. Kerbs, channel drains or gullies.
Also near Harrowgate Hill
- Patios in Whinfield: East: late 20th century semis and detached homes.
- Patios in Haughton-le-Skerne: South-east: a conservation-area village green.
Services that fit Harrowgate Hill gardens: patio slabs and paving, garden paths and steps, porcelain patios.
All places we cover: areas page.
Harrowgate Hill: common patio questions
Do I need planning permission for a patio in Harrowgate Hill?
No, not for a ground-level back-garden patio. The residential streets are outside any conservation area.
Why has my old patio cracked?
Most likely it was laid on sand straight over clay. As the clay wets and dries, the slabs move. A compacted stone base prevents that.
Can you lay a patio where there is no side access?
Yes. We bring materials through the house with floor protection, or use a rear lane where there is one.
Is a path to the shed worth doing at the same time?
Usually, yes. One delivery and one set-up covers both, and the materials match.
Sources: Wikipedia: Harrowgate Hill; ONS Census 2021 TS044, Harrowgate Hill ward (Nomis); Darlington Borough Council: conservation areas; BGS Geology Viewer; Environment Agency Flood Map for Planning.
